DOWSIL™ CC-8033 UV and Dual Moisture Cure Conformal Coating

What is DOWSIL™ CC-8033 UV and Dual Moisture Cure Conformal Coating?

One-part, translucent, medium viscosity, conformal coating with primary UV or LED curing and secondary moisture cure for shadow regions. Our medium-viscosity silicone coatings support high-speed production methods, including manual or automated spraying, flow, or jetting techniques as well as needle dispensing for damming or keep out regions or where thicker coating protection is required.

Uses

Rigid circuit boards
Electronic Printed Wiring Boards (PWB)
Sensitive components and fine pitch design

Benefits

Fast UV or LED cure
Secondary moisture cure for shadowed areas
Sprayable and/or needle dispense
Solvent free
UV indicator for inspection
Good adhesion
Wets out surface
UL V-0 flammability rating
Non-Oxygen Inhibited formulation
Improves reliability against stress
Reduces work in progress

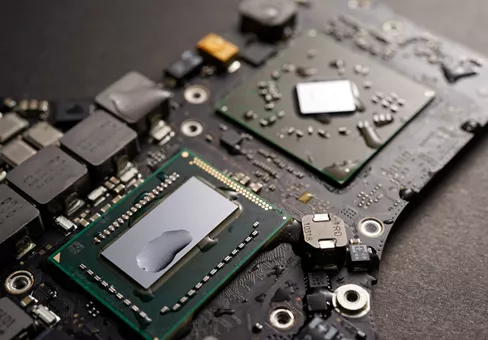

A black colour waterproof water resistant Printed Circuit Board with CPU, SMD & IC mounted part on board

DOWSIL™ CC-8033 Conformal Coating for Dam and Fill

DOWSIL™ CC-8033 is a medium viscosity conformal coating that can be sprayed and/or needle dispensed.

VIEW VIDEO

Conformal coating application on electronics board under UV light

DOWSIL™ CC-8000 Series Conformal Coatings

DOWSIL™ CC-8000 Series Conformal Coatings Product Family Overview

VIEW VIDEO

Properties

product.use.formulating.properties.Title
Number of Parts	One Part

typical.properties.Title
Color	Translucent
Cure Type	UV/LED
Dispense Method	Needle, Spray
Durometer - Shore A	30
Non-Volatile Content	95%
Solvent Added	No
Viscosity	15000 mPa.s
