DOWSIL™ CC-8036 UV and Dual Moisture Cure Conformal Coating

What is DOWSIL™ CC-8036 UV and Dual Moisture Cure Conformal Coating?

One-part, translucent, high viscosity, conformal coating with primary UV or LED curing and secondary moisture cure for shadow regions. Our high viscosity silicone coatings provide options to increase control over the speed and distance of flow, to prevent their spread into "keep out" areas. Our higher viscosity coatings also enables thicker coating layers in one pass.

Uses

Rigid circuit boards
Electronic Printed Wiring Boards (PWB)
Sensitive components and fine pitch design

Benefits

Fast UV or LED cure
Secondary moisture cure for shadowed areas
Needle dispense
Solvent free
UV indicator for inspection
Good adhesion
Wets out surface
UL V-0 flammability rating (Pending)
Non-Oxygen Inhibited formulation
Improves reliability against stress
Reduces work in progress

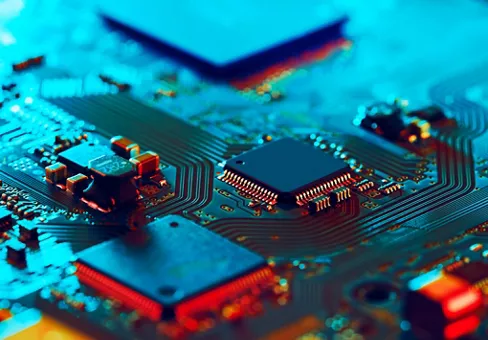

Conformal coating application on electronics board under UV light

DOWSIL™ CC-8036 Conformal Coating Needle Dispense

DOWSIL™ CC-8036 is a high viscosity conformal coating that can be needle dispensed.

VIEW VIDEO

DOWSIL™ CC-8000 Series Conformal Coatings

DOWSIL™ CC-8000 Series Conformal Coatings Product Family Overview

VIEW VIDEO

Properties

product.use.formulating.properties.Title
Number of Parts	One Part

typical.properties.Title
Color	Translucent
Cure Type	UV/LED
Dispense Method	Needle
Durometer - Shore A	30
Non-Volatile Content	97%
Solvent Added	No
Viscosity	>20000 mPa.s
